What is a Midsole in Shoes?

Well, it’s that essential layer nestled right between the outsole (the bottom part of the shoe) and the upper (the part that wraps around your foot). From the perspective of footwear manufacturing, the midsole is a key player when it comes to comfort and performance.

Unlike removable insoles, midsoles are permanently integrated into the shoe construction. They’re typically made from high-performance polymer materials like EVA (ethylene-vinyl acetate), PU (polyurethane), or TPU (thermoplastic polyurethane) that undergo specialized foaming processes to achieve optimal energy return and shock absorption.

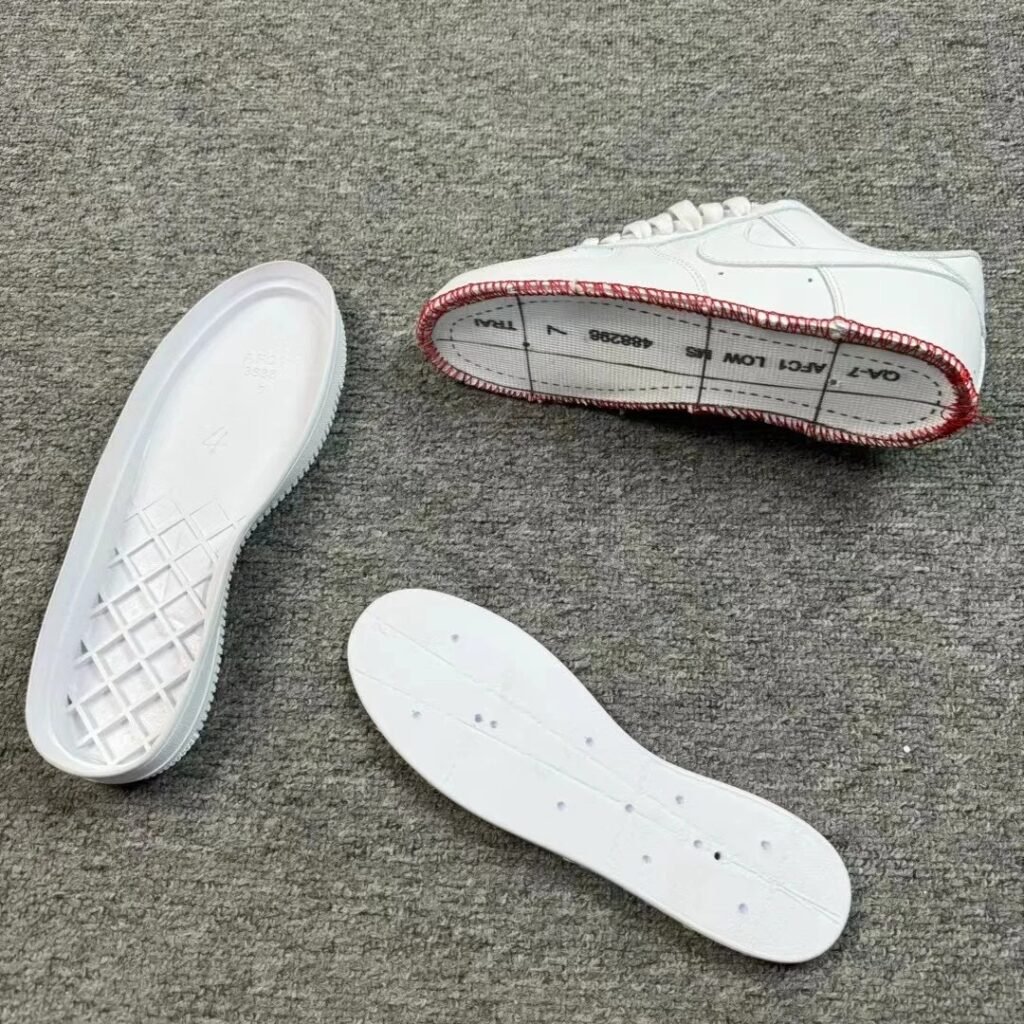

The Complete Guide to Shoe Midsoles 2

Core Functions & Importance of Midsoles

  1. Shock Absorption: When you’re running or jumping, midsoles play a crucial role in absorbing impact forces that can be up to 10 times your body weight, helping to protect your joints from potential damage.
  2. Energy Return: High-quality midsole materials are designed to transform some of that impact energy into forward motion, which boosts your overall efficiency. Research in biomechanics suggests that effective energy return can cut down your energy use by about 5-8%.
  3. Motion Control: Thanks to clever density gradients and smart structural design, midsoles help keep your feet from rolling too much inward or outward, ensuring your gait stays aligned.
  4. Weight Optimization: The latest midsole technologies offer plenty of cushioning without the extra weight. In fact, professional running shoe midsoles usually weigh in at just 50-150 grams.

Analysis of Main Midsole Material Technologies

EVA (Ethylene-Vinyl Acetate)

  • Characteristics: Lightweight, cost-effective, excellent processing properties
  • Density range: 0.15-0.3g/cm³
  • Rebound rate: 40-60%
  • Applications: Common in casual footwear and entry-level running shoes

PU (Polyurethane)

  • Characteristics: Superior durability, excellent support
  • Density range: 0.3-0.6g/cm³
  • Rebound rate: 50-65%
  • Applications: Basketball shoes, work boots requiring high support

TPU (Thermoplastic Polyurethane)

  • Characteristics: High rebound, outstanding fatigue resistance
  • Density range: 0.4-0.8g/cm³
  • Rebound rate: 60-75%
  • Applications: Performance running shoes, competitive athletic footwear

Advanced Materials

  • PEBAX®: Rebound rates up to 70-85%, used in elite racing shoes
  • Supercritical foamed EVA: CO2 foaming process improves rebound by 20-30%
  • Carbon fiber composite midsoles: Combines lightness with rigidity for racing shoes

Relationship Between Midsole Structure & Athletic Performance

Let’s dive into the fascinating relationship between midsole structure and athletic performance! Footwear engineers are constantly fine-tuning midsole performance by focusing on a few key structural elements:

  1. Thickness gradient: The heel is usually 20-30% thicker than the forefoot, which helps with biomechanical alignment.
  2. Density zoning: Medial posts with higher density are designed to manage overpronation effectively.
  3. Geometric design: Structures that resemble waves or honeycombs boost directional stability.
  4. Composite construction: By blending different materials, they achieve the perfect balance between cushioning and rebound.

It’s interesting to note that midsole designs can vary quite a bit depending on the sport:

  • Running shoes: These are all about ensuring a smooth heel-to-toe transition.
  • Basketball shoes: They prioritize lateral support and protection from impacts.
  • Training shoes: These aim to strike a balance between cushioning and a good ground feel.

How to Choose the Right Midsole?

  1. Body weight: If you weigh over 80kg, it’s best to go for midsoles made from higher density PU or composite materials.
  2. Activity type: For running, you’ll want something that’s responsive, while walking calls for a focus on cushioning.
  3. Foot type: If you have flat feet, you’ll need extra support, whereas those with high arches should look for better shock absorption.
  4. Usage scenario: For long-distance activities, durability in your midsole materials is a must!

Professional recommendation: When trying shoes, evaluate midsole performance in:

  • Standing support
  • Walking transition smoothness
  • Jump landing cushioning

Midsole Maintenance & Lifespan Management

Average lifespan of quality midsoles:

  • Daily use: 800-1200km or 12-18 months
  • Intensive training: 400-600km or 6-8 months

Tips to extend midsole life:

  1. Avoid compressed storage
  2. Rotate multiple pairs to allow material recovery
  3. Clean with mild solutions, avoid harsh chemicals
  4. Store in cool, dry places away from heat sources

Professional Footwear Trends in Midsole Innovation

  1. 3D printed midsoles: Enable precise density zoning with 30-40% improved rebound efficiency
  2. Smart cushioning materials: Auto-adjusting firmness based on impact force
  3. Eco-friendly solutions: Bio-based PU and biodegradable EVA applications
  4. Unibody construction: Integrated midsole-outsole designs minimize energy loss
